HC101D 2D Bluetooth Barcode Scanner Wireless Back Clip Phone Barcode Reader

The HC101D 2D Bluetooth Barcode Scanner is a powerful and versatile back clip-on device that transforms your smartphone into a professional-grade barcode scanner. It supports both 1D and 2D barcode scanning, offering fast, accurate, and efficient data capture without relying on your phone’s camera.

Designed for retail, warehouse, and office use, this scanner is compatible with a wide range of mobile devices and applications. With wireless connectivity, ergonomic design, and long battery life, it provides a reliable solution for high-efficiency workflows.

Key Features:

• Back Clip Design – Easily attaches to smartphones, replacing PDA and traditional scanners
• 1D & 2D Barcode Support – Scan QR codes and advanced barcode formats

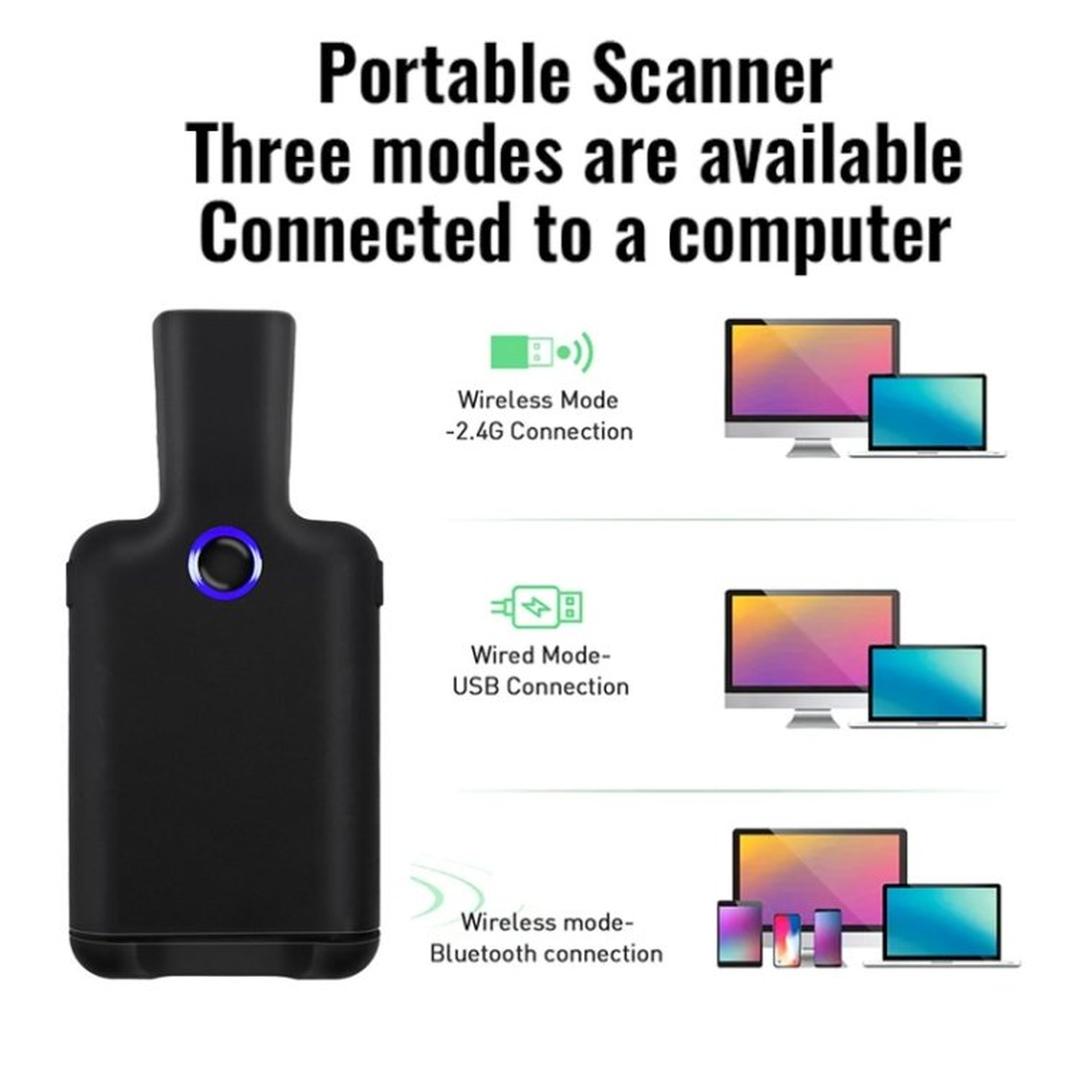

• Wireless Connectivity – Supports Bluetooth, USB, and 2.4G connections
• Fast Scanning – Up to 100 scans per second
• Wide Compatibility – Works with mobile apps, WPS, Notepad, and office files (.docx, .xlsx, .txt)

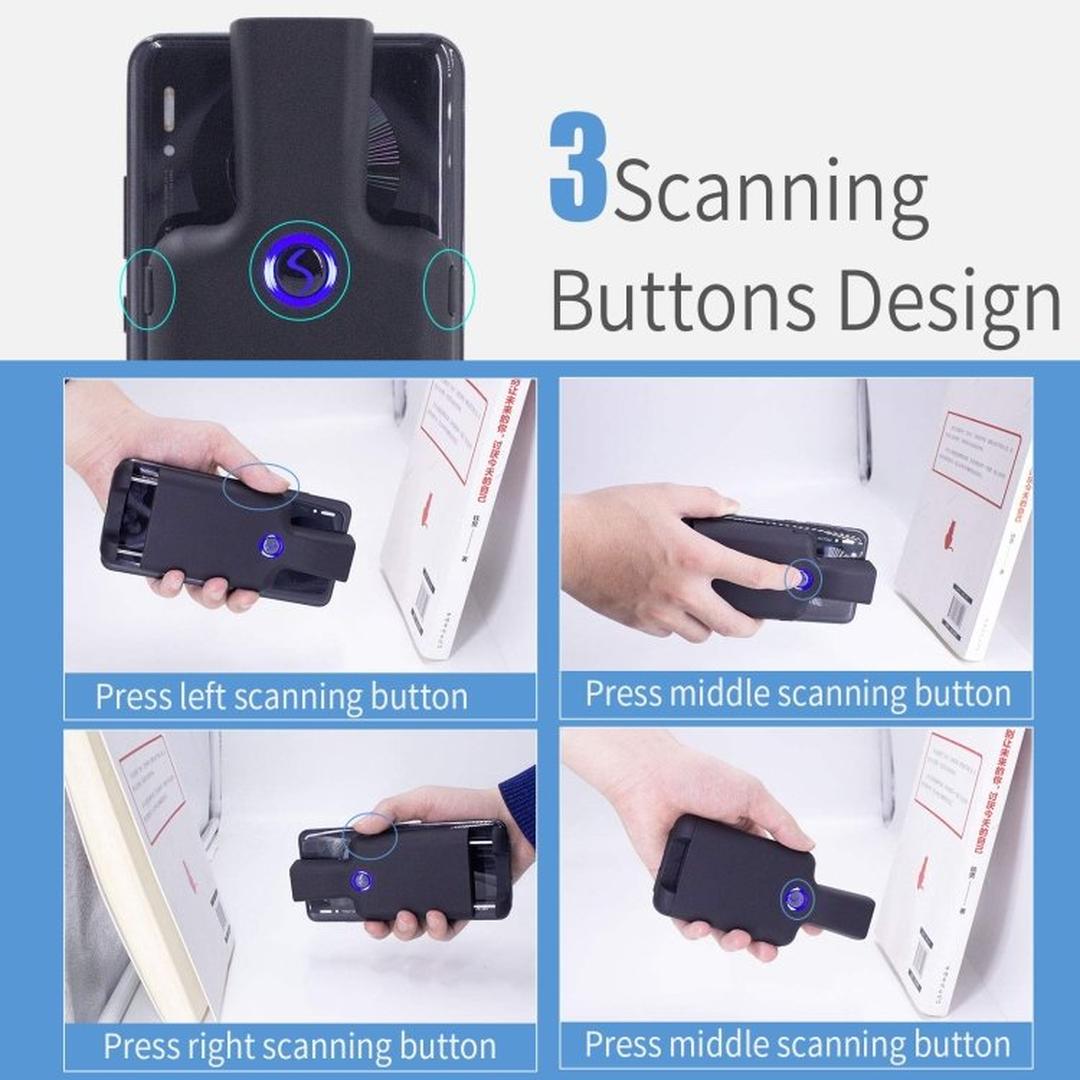

• Multiple Scanning Modes – Manual, automatic induction, and continuous
• Ergonomic Design – Comfortable for long-term use without fatigue
• Long Battery Life – 2500mAh lithium battery for extended operation
• LED & Buzzer Indicators – Instant feedback for successful scans

Specifications:

General:

• Model: HC101D
• Material: ABS Plastic

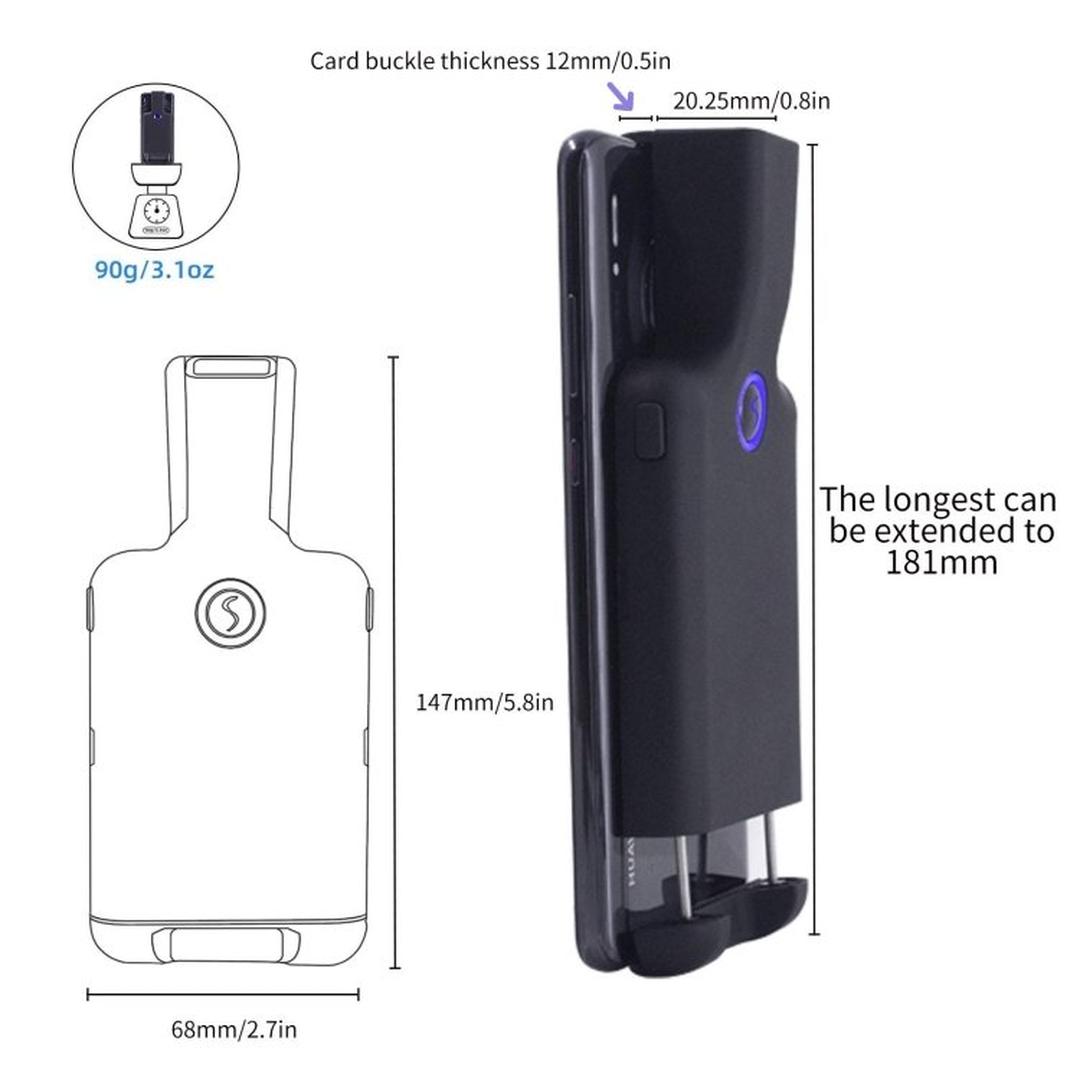

• Dimensions: 147 × 68 × 32.25 mm
• Weight: 106g
• Interface: USB + Bluetooth + 2.4G
• Prompt Mode: Indicator light, buzzer

Performance:

• Image Sensor: 1024 × 600 pixels
• Resolution: ≥ 4mil
• Decoding Speed: 100 scans/second
• Scanning Modes: Manual, Induction, Continuous
• Scanning Depth: 40 mm – 300 mm
• Contrast: ≥ 10%
• Reading Angle:
  • Rotation: 360°
  • Tilt: ±65°
  • Deflection: ±60°

Supported Barcodes:

1D:

• Codabar, Code 11, Code 93, MSI
• Code 128, UCC/EAN-128, Code 39
• EAN-8, EAN-13, UPC-A, SBN
• Industrial 25, Interleaved 25, Standard 25, 2/5 Matrix

2D:

• QR Code
• DataMatrix
• PDF417
• Aztec
• Hanxin
• Micro PDF417

Connectivity:

• Bluetooth Protocol: HID, SPP, BLE

Power:

• Power Supply: 5V / 1A
• Battery Capacity: 2500mAh

Environment:

• Working Temperature: -20°C to 50°C
• Humidity: 5% – 95% (non-condensing)
• Drop Resistance: Withstands 1.2m drop to concrete

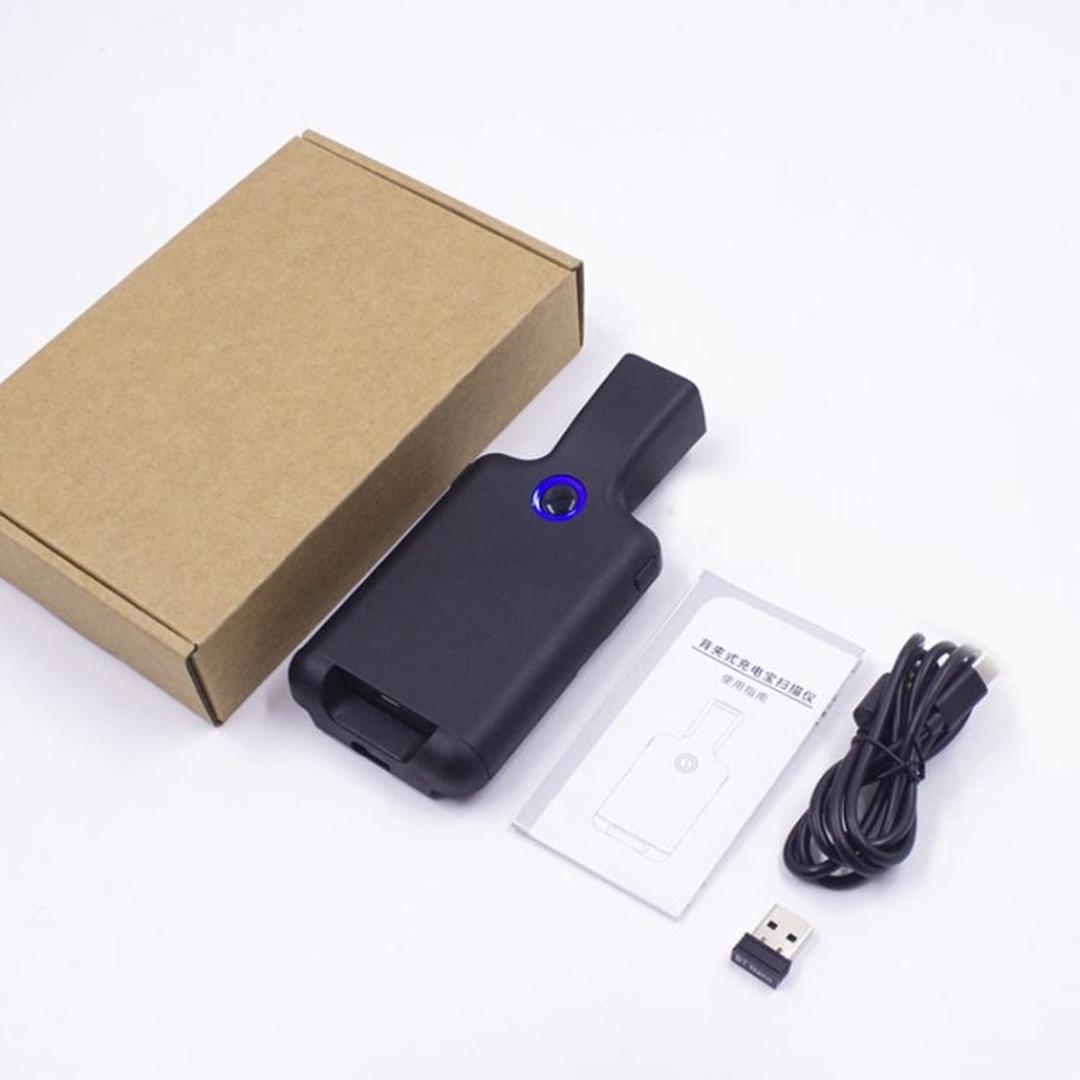

Accessories Included:

• Type-C Data Cable
• USB Charging Cable
• Wireless Receiver
• User Manual

Package Details:

• Weight: 0.22 kg
• Size: 22 × 12 × 4 cm
• Quantity per Carton: 32
