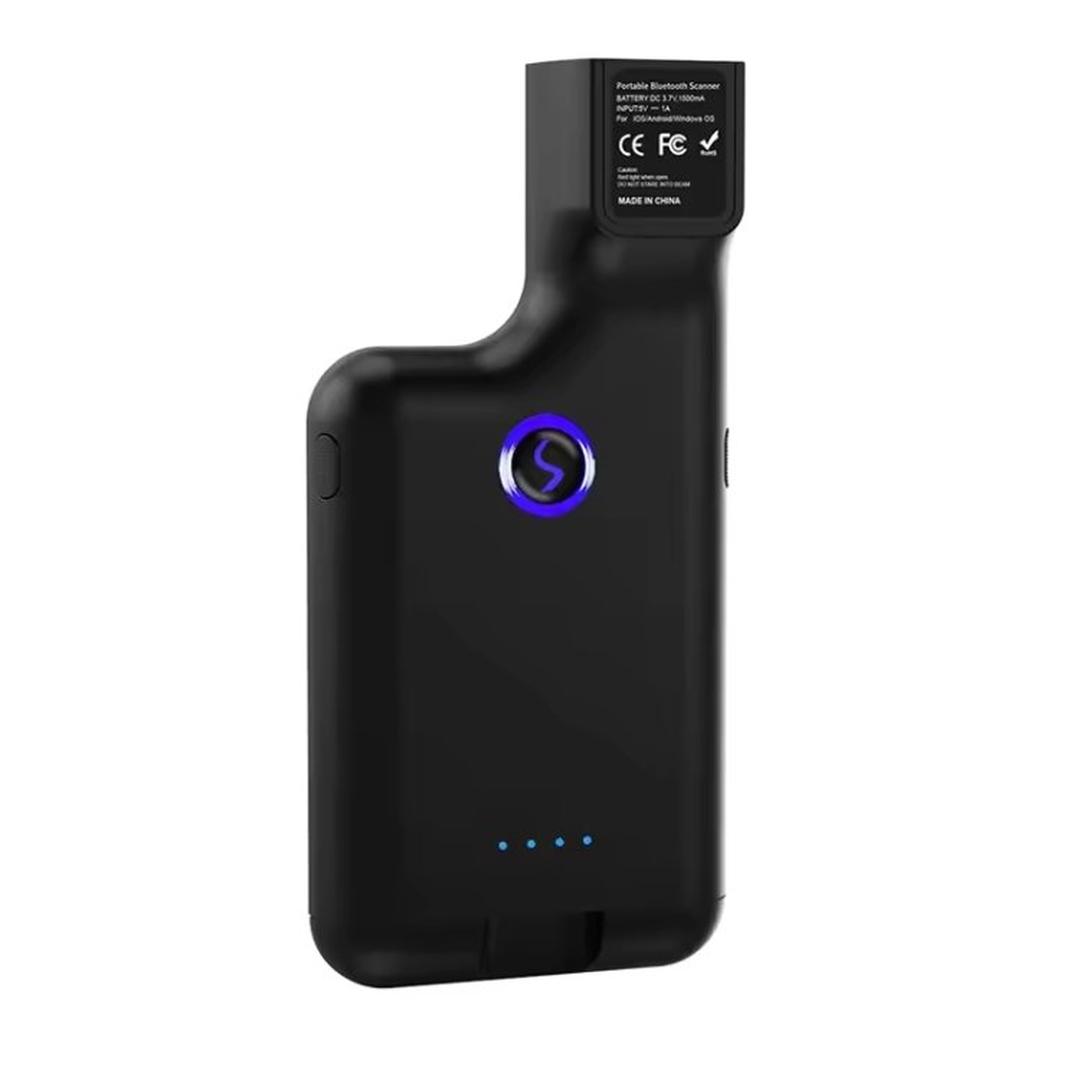

1D Bluetooth Barcode Scanner Wireless Back Clip Phone Barcode Reader

The 1D Bluetooth Barcode Scanner is a versatile and portable back-clip scanner designed to turn your smartphone into a powerful data collection device. It eliminates the need for manual barcode entry or camera-based scanning, providing faster and more efficient performance.

Compatible with a wide range of mobile phones and apps, this wireless scanner is ideal for retail, inventory management, and office use. With its ergonomic design and long-lasting battery, it ensures comfort and reliability during extended working hours.

Key Features:

• Back Clip Design – Easily attach to your smartphone, replacing traditional PDA scanners
• Wireless Connectivity – Supports Bluetooth, USB, and 2.4G wireless connection
• Fast & Efficient Scanning – Up to 100 scans per second
• Wide Compatibility – Works with mobile apps, WPS, Notepad, and office software (.docx, .xlsx, .txt)
• Multiple Scanning Modes – Manual, automatic induction, and continuous scanning
• Ergonomic & Lightweight – Comfortable to use for long periods without fatigue
• Long Battery Life – Built-in 2500mAh lithium battery for extended use
• LED & Buzzer Feedback – Clear scanning confirmation

Specifications:

General:

• Material: ABS Plastic
• Size: 147 × 68 × 32.25 mm
• Weight: 106g
• Interface: USB + Bluetooth + 2.4G
• Prompt Method: Indicator light, buzzer

Performance:

• Image Sensor: 1024 × 600 pixels
• Resolution: ≥ 4mil
• Decoding Speed: 100 scans/second
• Scanning Modes: Manual, Induction, Continuous
• Scanning Depth: 40 mm – 300 mm
• Contrast: ≥ 10%
• Reading Angle:
  • Rotation: 360°
  • Tilt: ±65°
  • Deflection: ±60°

Supported Barcodes (1D):

• Codabar, Code 11, Code 93, MSI
• Code 128, UCC/EAN-128, Code 39
• EAN-8, EAN-13, UPC-A, SBN
• Industrial 25, Interleaved 25, Standard 25, 2/5 Matrix

Connectivity:

• Bluetooth Protocol: HID, SPP, BLE

Power:

• Power Supply: 5V / 1A
• Battery Capacity: 2500mAh

Environment:

• Working Temperature: -20°C to 50°C
• Humidity: 5% – 95% (non-condensing)
• Drop Resistance: выдерживает падение с 1.2 м на бетон

Accessories Included:

• Type-C Data Cable
• USB Charging Cable
• Wireless Receiver
• User Manual

Package Details:

• Weight: 0.23 kg
• Size: 22 × 12 × 4 cm
• Quantity per Carton: 32
